Opthalmoscope / Retinoscope

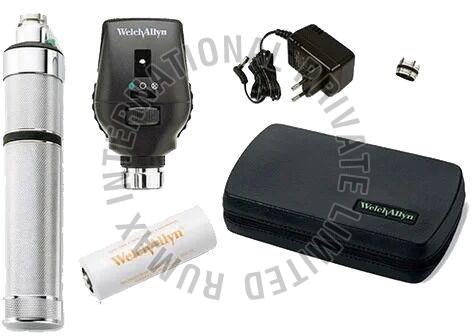

Facilitates ophthalmoscopy by enabling easier entry into the eye, a larger field of view and reduced glare compared to standard ophthalmoscopes LED (SureColour) light for true tissue colour and consistent long-lasting performance Produce a shadow-free spotlight, easier entry into undilated pupils and a larger field of view Equipped with 28 focusing lenses with a range of -25 to +40 diopters It has cross-linear polarising, red-free and cobalt blue filters It has has micro-spot, small spot, large spot, slit and fixation aperture Features a smooth, non-abrasive knurled finished rechargeable NickelCadmium 60 minute power handle that can also be converted for use with standard C-cell batteries

The Welch Allyn 3.5v Streak Retinoscope provides superior illumination and is designed for accurate refraction. It features one-hand operation and includes a comfortable rubber brow rest. The retinoscope offers independent rotation and vergence movements for precise control. It allows continuous 360-degree rotation for easy positioning of the streak to determine axis, with smooth vergence movement controlled by a convenient column mechanism. The retinoscope includes a dynamic retinoscopy option with a near fixation target, delivering a bright, well-defined streak that facilitates quick and precise refractions, even in patients with small pupils. A ring rheostat enables smooth control of illumination, providing 2.8 times the brightness of standard retinoscopes. The crossed linear polarizing filter eliminates glare from trial lenses, enhancing exam precision. An external focusing sleeve improves comfort and maneuverability, while sealed optics maintain lens cleanliness for effective examinations.

Retinoscope:

• Includes options for both dry cell and rechargeable Ni-Cad handle configurations.


• Superior streak quality aids in easier and quicker refractions, particularly in patients with small pupils.

he Heine ophthalmoscope is a compact and ergonomic device used by eye care professionals for detailed examination of the eye's interior. It features high-quality optics including lenses and mirrors, along with an adjustable light source for optimal illumination. This instrument is essential for diagnosing various eye conditions such as retinal disorders and optic nerve abnormalities, enabling precise clinical assessments and treatment planning.

The Heine retinoscope is a portable device used by eye care professionals to assess refractive errors. It emits a bright light into the eye, allowing observation of the reflected light for insights into hyperopia, myopia, and astigmatism. Its ergonomic design facilitates accurate examinations in various clinical settings, aiding in the prescription of corrective lenses.

Indirect ophthalmoscope, is an optical instrument worn on the examiner's head, and sometimes attached to spectacles, that is used to inspect the fundus or back of the eye.

The Professional Ophthalmoscope has been designed to ensure ultimate control. Lenses, graticules and filters can all be introduced at the touch of a fingertip without the need to pull away from the patient.

POSITIVE ACTION MAYWHEEL AND COMPREHENSIVE LENS RANGE

The positive action, easy, access, maywheel not only allows you to dial up the required lens quickly, but also gives you total control of where you in the lens range making each exam quicker and easier.

The extensive range of +29D to -30D in single dioptre steps ensures easy examination of all ocular structures and covers a wide range of patient / User prescriptions. A quick step swing of +/- 20D helps speed up diagnosis.

XENON ILLUMINATION

The Professional also uses Xenon illumination foe a brighter and whiter long lasting light. Giving you more power a d fewer bulb changes.

SWING OVER FILTER

The red free filter for enhanced vessel examination can be used in conjunction with any of the 6 diagnostic beams.

BROW REST

The integral soft brow rest allows for easy positioning and protects your lenses if you are a spectacle wearer.

SPECIALIST OPHTHALMOSCOPE

•


  Glass lenses produced in the UK provide greater clarity than ever before.





•


  Pupillometer for easier pupil size estimations.





•


  Morton Lens Track control allows you to select lens powers from +44D to -45D





•
  Precision Changes in Dioptre lens power.



•
  Step changes from +14D to -15D.



•
  Auxiliary wheel for +/-10D, 15D and 30D step changes.



•


  Five diagnostic beams for full diagnostic capability





•
  Wide Angle - for general examination.



•
  Macula - for more detailed views.



•
  Intermediate - providing easier access for non-dilated pupils and in peripheral examination. Ideal for paediatrics.



•
  Slit - to determine retinal elevations and depressions. Used to access the anterior chamber depth.



•
  Fixation Cross when used in combination with the Red Free Filter - projects a graticule onto the retina for assessment of eccentric fixation.



•


  Swing over Green, Red Free, Filter when used in combination with the Fixation Cross





•


  Blue Filter - to be used in combination with Fluorescein for assessing corneal scratches




PROFESSIONAL RETINOSCOPE

• Choice of Brow Rests to accommodate glasses wearers.


• Patented Neutralisation Check:


•
  Allowing rapid confirmation of neutralisation by changing the beam from divergent to convergent.



• Patented Precision Magnetic Control:


•
  360 degree access to a single rotational and convergence control.



• Two aperture choices:


•
  4mm to optimise brightness of retinal flex.



•
  1.7mm to optimise resolution of retinal flex.


The Professional retinoscope features:

• Industry leading optics


• Ergonomic beam control


• Patented neutralisation check


• Slimline handle


• Competitive warranty and exceptional customer support

INDUSTRY LEADING OPTICS

With our signature Keeler Optics that provide you with a sharper, clearer image while reducing glare from the corneal reflex, you know you’re getting world-class optics you can trust.

PATENTED NEUTRALISATION CHECK

Changing the beam from divergent to convergent allows you to easily check the neutral point accuracy and guarantee a correct assessment every time.

ERGONOMIC BEAM CONTROL

Have full control over adjustments during examinations, with easy access to a single control for changes in rotation and conversion. Using rare earth magnetic technology to allow for meticulously precise movements, the professional retinoscope is a tool you can rely on.

SLIMLINE HANDLE

The lightweight, slimline handle makes holding the retinoscope effortless and reduces fatigue as well as making it easier to clean to reduce contamination between patients.

one of the most durable ophthalmologist the market;are liable tool through our training and into practice. all the apertures and filters as in ourfull-size ophthalmologist,so you don’t have to sacrifice any functionality

The Welch Allyn PanOptic Ophthalmoscope is a specialized medical device used by healthcare professionals, particularly ophthalmologists and optometrists, for examining the internal structures of the eye. Here's a description of its key features and functionality:

1.


   PanOptic Design: The PanOptic ophthalmoscope is known for its innovative design that provides a wider field of view compared to traditional ophthalmoscopes. It enables easier viewing of the retina and optic nerve without needing to dilate the pupil excessively.





2.


   Optics: It utilizes advanced optics to capture a panoramic view of the fundus (the back of the eye), which includes the retina, optic disc, and blood vessels. This panoramic view enhances diagnostic capabilities by allowing for a comprehensive examination of these structures.





3.


   LED Illumination: The ophthalmoscope typically features LED (Light Emitting Diode) illumination, which provides a bright and clear view of the eye's interior. LED lights are energy-efficient and offer a consistent light output for accurate examination.
